Simplecom EC415B NVMe M.2 SSD to PCIe x4 x8 x16 Expansion Card with Aluminium Heat Sink Black

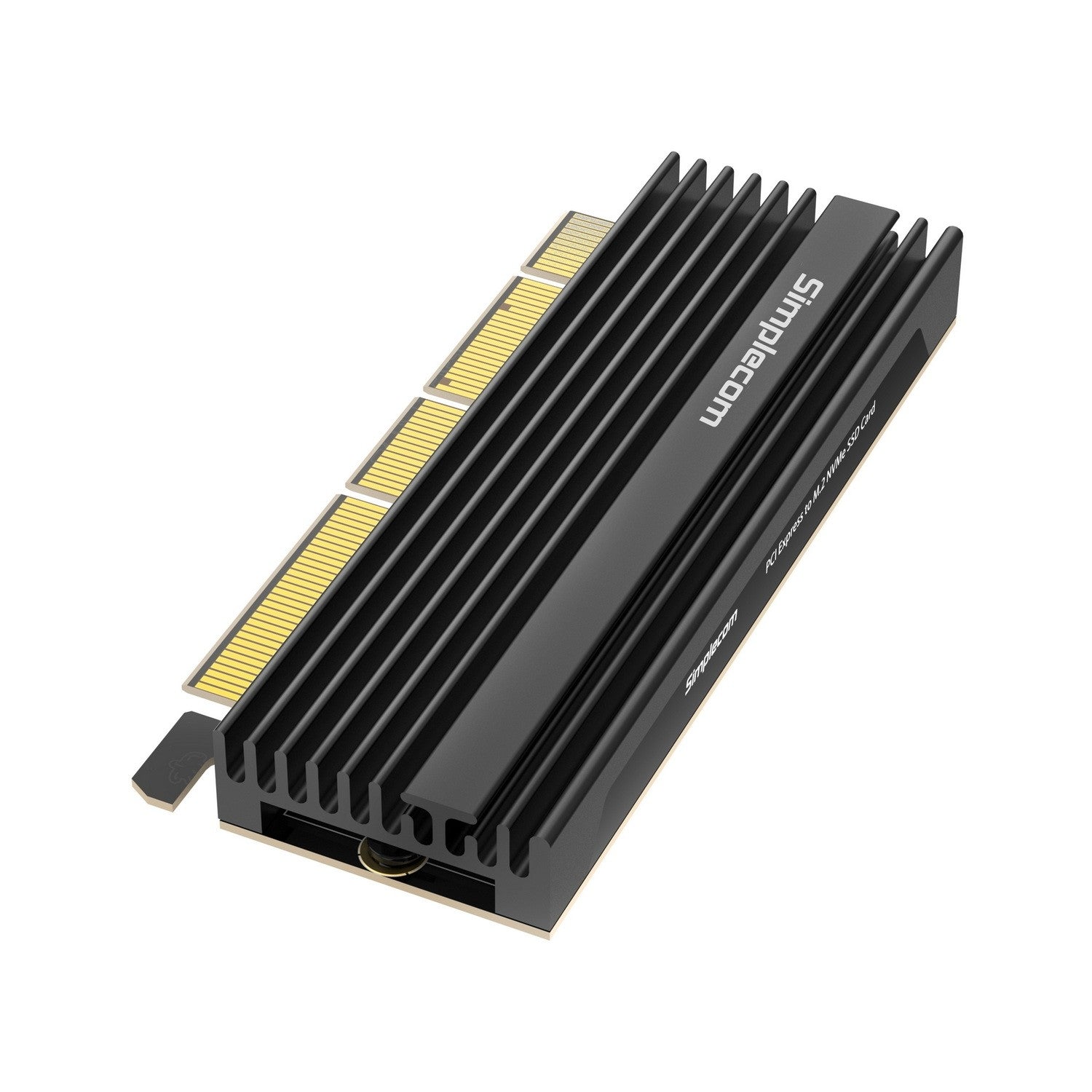

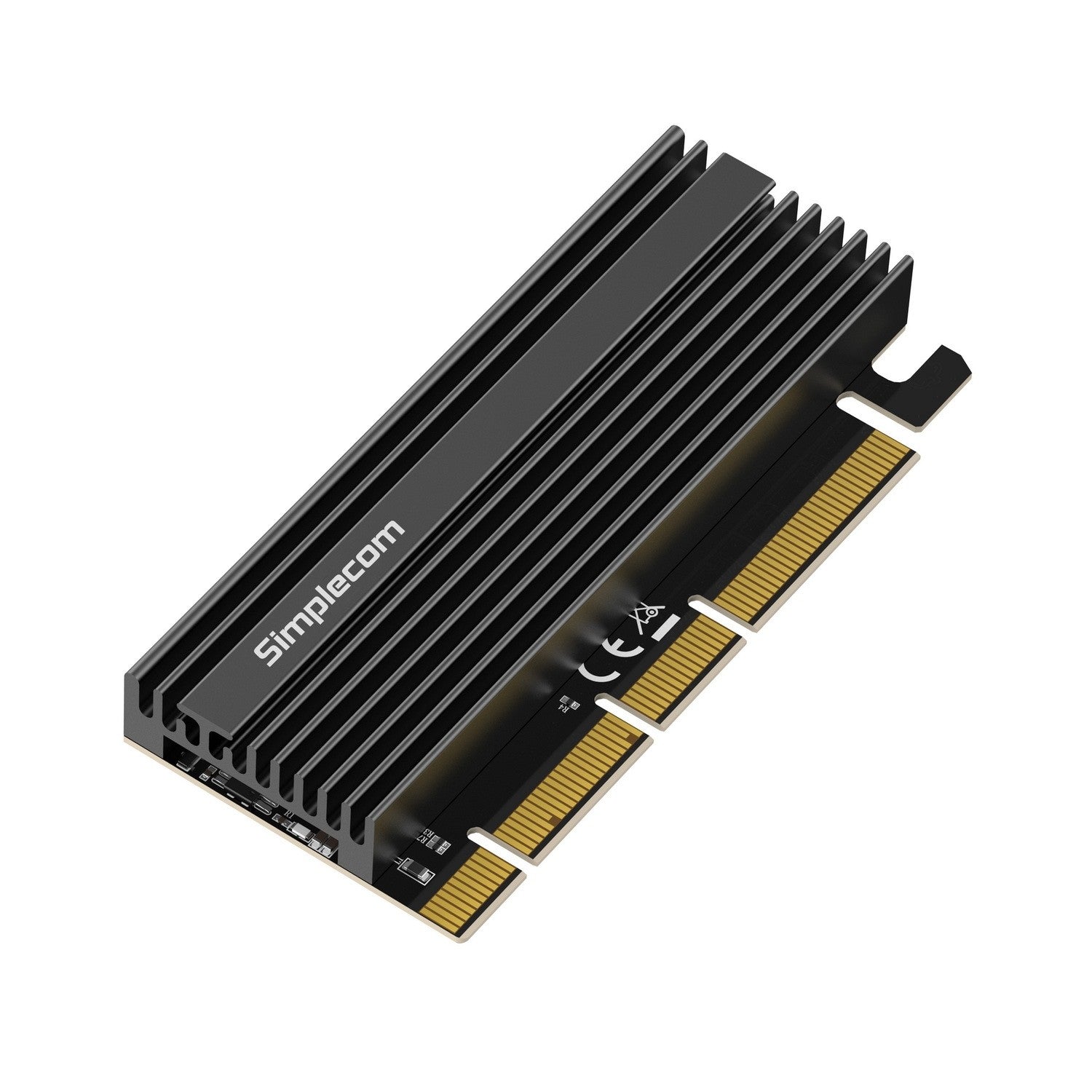

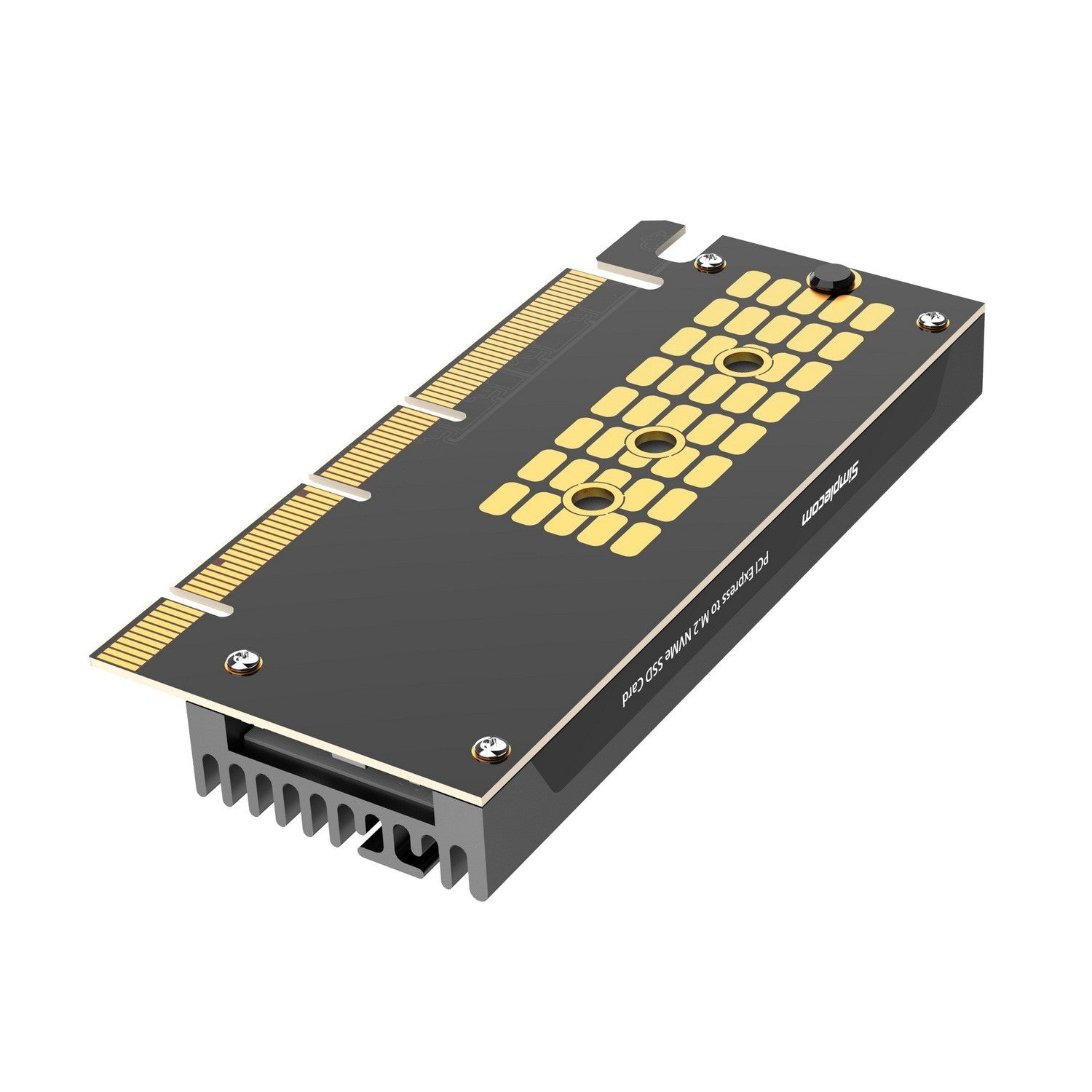

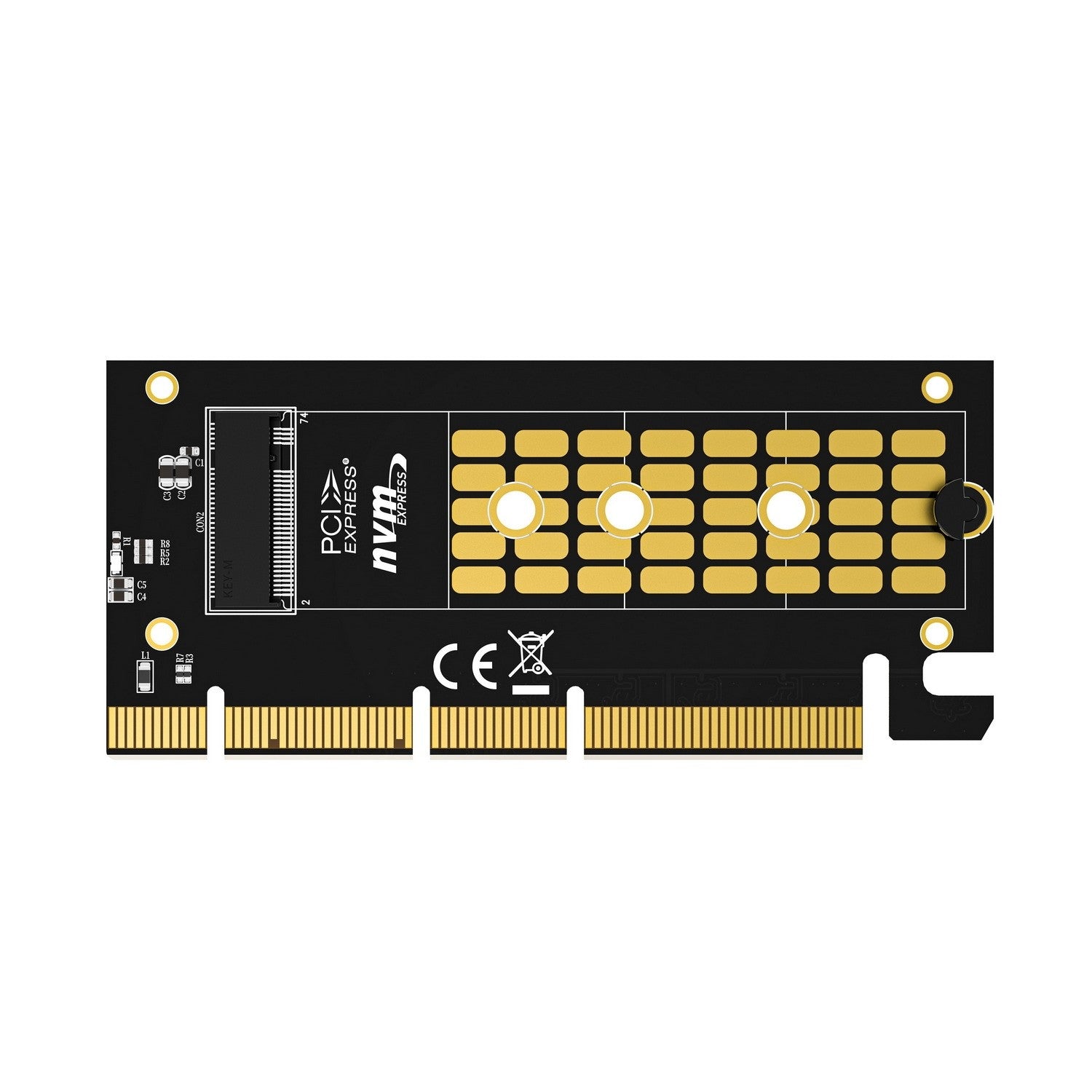

EC415B is a PCI Express expansion card designed to add NVMe M.2 SSD onto existing PC motherboard. It comes with aluminium heatsink for effective heat dissipation and silicone thermal pad for improved thermal conductivity. Designed for NVMe M.2 SSD only, this expansion card can fully utilize the performance of the NVMe SSD.

Features
Add extra NVMe M.2 slot to your PC
Aluminium heat sink for effective heat dissipation
Silicone thermal pad for improved thermal conductivity
Supports physical PCIe x4 x8 x16 slot
Supports logical/throughput interface up to PCIe x4
Powered by PCIe slot, no additional power required
Compatible with Windows 8 and above

Specifications
Model: EC415B
Color: Black
Physical Interface: PCI Express x4 / x8 / x16
Logical Interface: PCI Express x4
Bandwidth: up to 7.8 Gbps (PCIe x4 on PCIe 4.0)
Module Key: M key (for NVMe M.2 only)
Number of Supported Drive: 1
Supported Type M.2 SSD: 2230, 2242, 2260, 2280
Dimension: 99 x 45 x 13mm

Package Contents
1x NVMe M.2 to PCIe Expansion Card
Heatsink with thermal pad
Standoff and screw set

Important Note
This model is for use with NVMe SSD only, SATA M.2 SSD is Not supported
It supports physical PCIe x4 x8 x16 slot only, PCIe x1 slot is Not supported
It supports logical/throughput interface up to PCIe x4
NVMe M.2 SSD requires the use of Intel 9 series (Z97 H97 Z170 X99) or higher version chipset based motherboard with Windows 8 or higher operating system
If there is a yellow exclamation mark under the Device Manager after installation, you may need to check if additional driver required from SSD manufacturer
Legacy motherboard without built-in NVMe M.2 slot can’t support booting operating system from PCI Express
