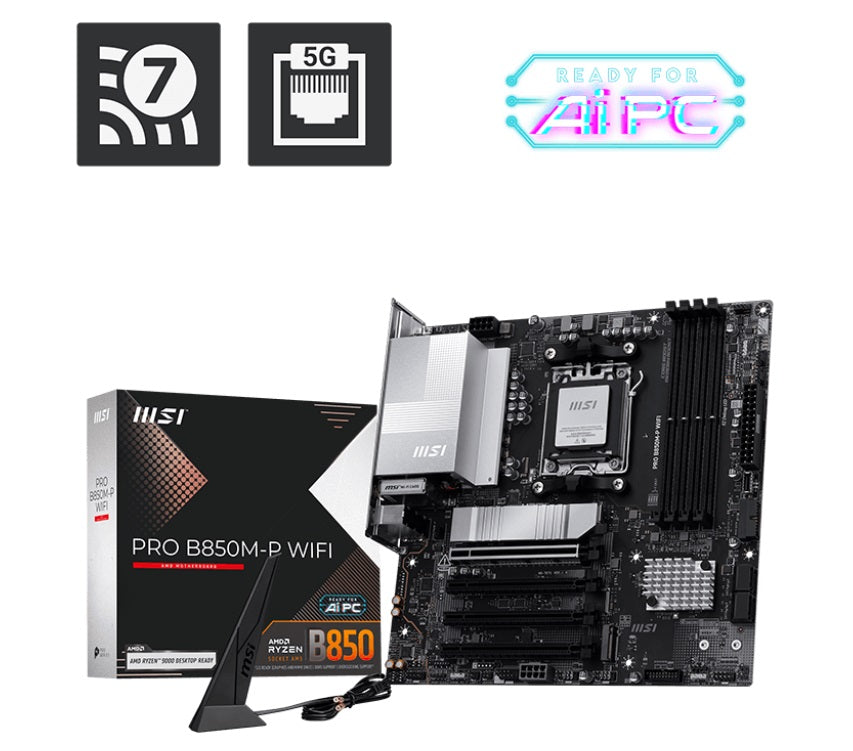

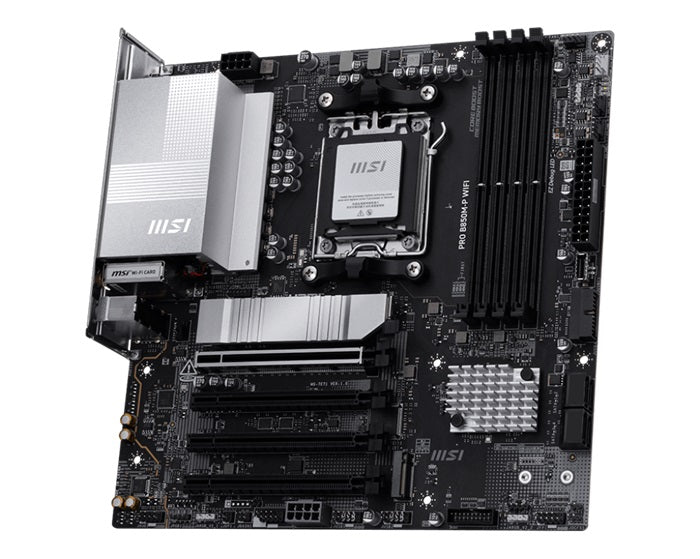

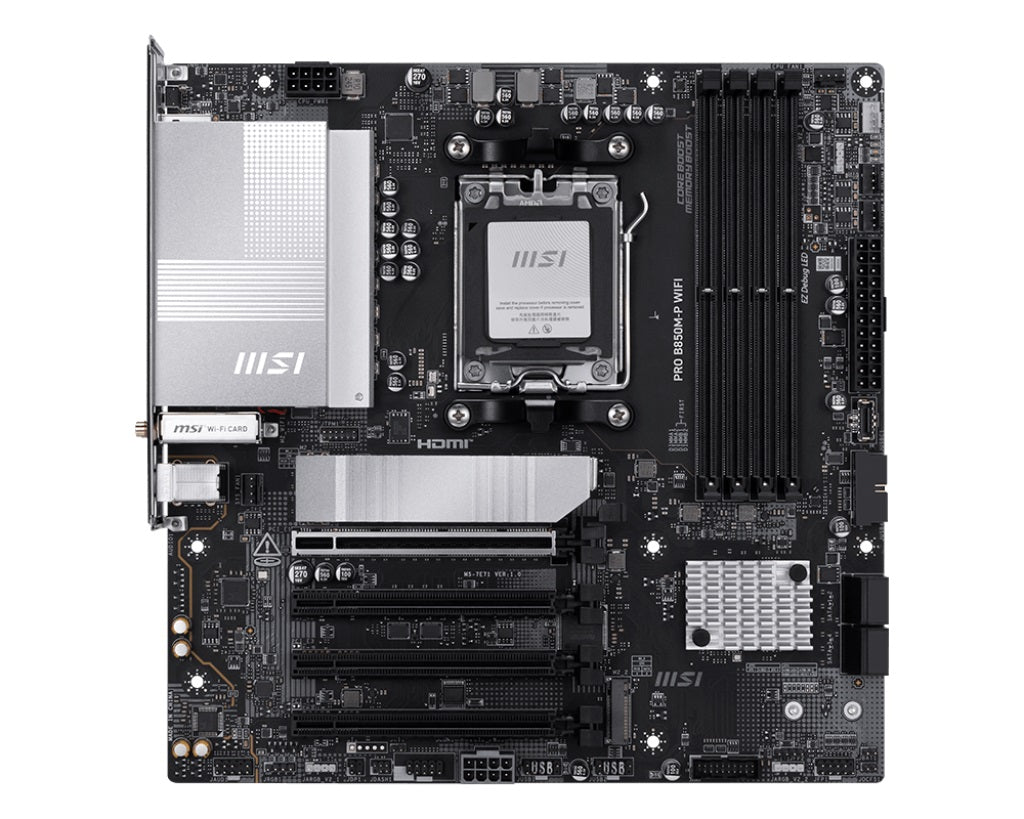

MSI PRO B850M-P WIFI, AM5, 4x DDR5 256GB, 1x HDMI, 1x PCI-E x16 slot, 3x M.2,4x USB2.0, 3x USB C, Wi-Fi 7

MSI MAG B850M-P WIFI, AM5, 4x DDR5 256GB, 1x HDMI, 1x PCI-E x16 slot, 3x M.2,4x USB2.0, 3x USB C, Wi-Fi 7

SPECIFICATIONS

Model Name
PRO B850M-P WIFI

CPU Support
Supports AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series Desktop Processors

CPU
Socket Socket AM5

Chipset
AMD B850 Chipset

Expansion Slots
1 x PCIe 5.0 x16 slot
3 x PCIe 3.0 x1 slots

Display Interface
Support 4K@60Hz as specified in HDMIâ„¢ 2.1,
DisplayPort 1.4 – Requires Processor Graphics

Memory Support
4 DIMMs, Dual Channel DDR5 – 8200+ MT/s (OC)

Storage
1 x M.2 Gen5 x4 128Gbps slot,
1 x M.2 Gen4 x4 64Gbps slot,
1 x M.2 Gen4 x2 32Gbps slot,
4 x SATA 6Gbps ports

USB ports
3 x USB 10Gbps (1 Type-A + 2 Type-C),
6 x USB 5Gbps (6 Type-A)
8 x USB 2.0

LAN
Realtek® 8126 5G LAN

WiFi / BT
Wi-Fi 7 Solution, Bluetooth 5.4

Audio
8-Channel (7.1) HD Audio with Audio Boost


FEATURES

Wi-Fi 7
Wi-Fi 7 is the latest wireless solution that takes a huge leap
forward with multiple improvements to meet the traffic demand
brought and the growing number of wireless devices.

5G Network Solution
Featuring premium 5G LAN to deliver better network experience.

EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2
SSD and Shield Frozr much easier

Triple M.2 Connectors
Onboard 3x M.2 connectors with PCIe 4.0 solution, strengthened
by M.2 Shield Frozr.

Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest
DDR5 memory and MSI Memory Boost technology.

Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for
maximum transfer speed.

Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures
even high-end processors to run in full speed.

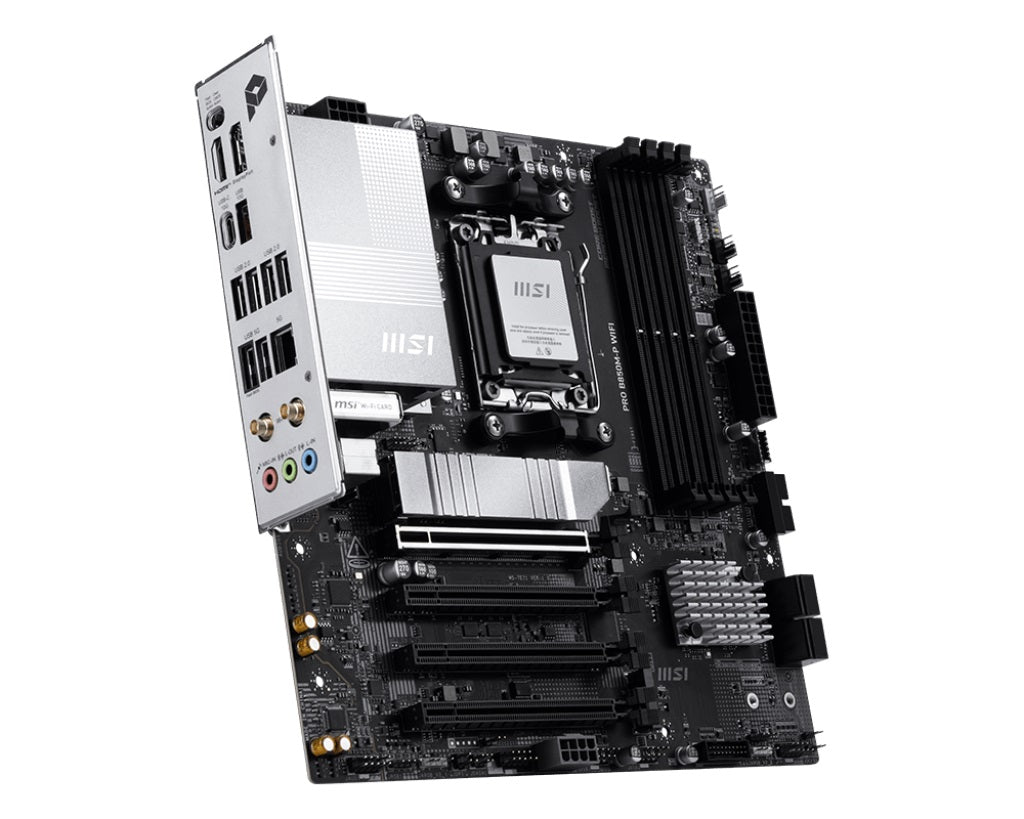

Pre-installed I/O Shielding
Better EMI protection and more convenience for installation

Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system
fan duty to a proper value.
