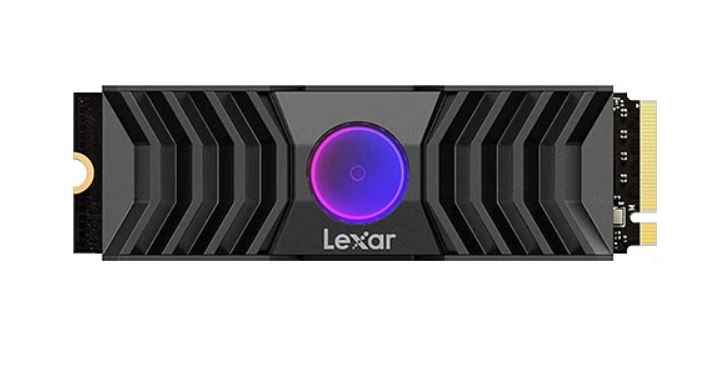

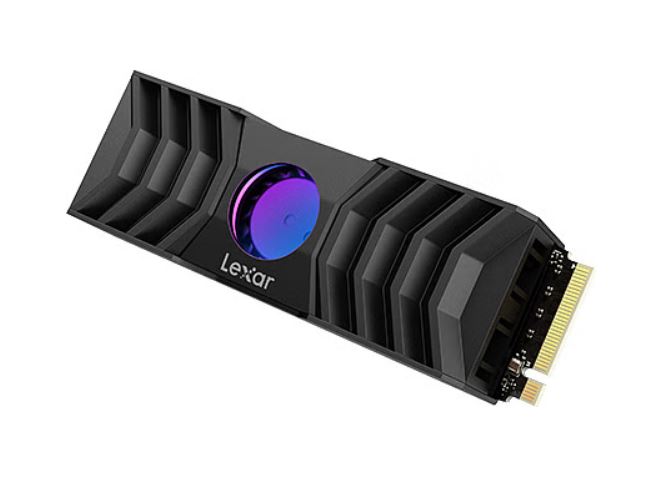

Lexar LNM1090001T-RNANG Internal SSD 1TB PCIe G5x4 M.2 2280 up to 11500MB/s read

Lexar LNM1090001T-RNANG 1TB PCIe G5x4 M.2 2280 up to 11500MB/s read, 9000MB/s write, with RGB FAN Heatsink

PCIe 5.0 speeds of up to 12,000MB/s read, 11,000MB/s write1 deliver cutting-edge performance.

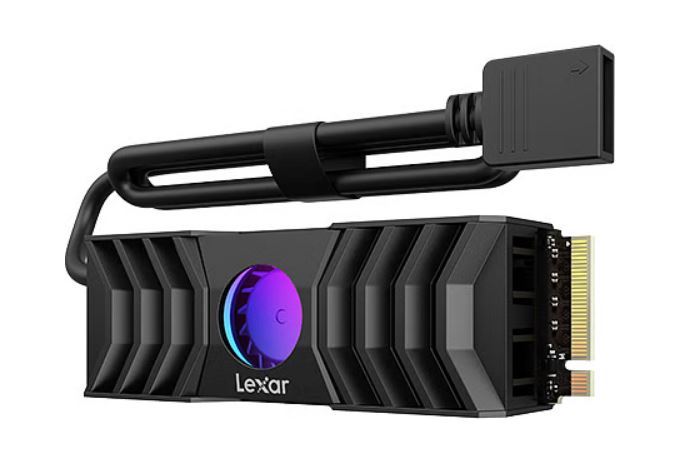

A unique and potent heatsink features a heat-blasting fan plus programmable RGB lighting for the ultimate in cool.

Features
Full-throttle Performance, Maximized Cooling
Twice as Fast as PCIe 4.0
Exceptionally Cool Design
Built to Perform
CPU Compatibility
Monitor Drive Health and Optimize Performance
Rigorously Tested

The Lexar Professional NM1090 PCIe 5.0 SSD is DRAM-based and uses SLC dynamic cache to improve performance, reduce latency, and support Microsoft DirectStorage.

Specifications

Form Factor
M.2 2280
Interface
PCIe Gen5x4
Speed
1TB sequential read up to 11,500MB/s, write up to 9,000MB/s
Random read up to 1300K IOPs, random write up to 1400K IOPs
2TB sequential read up to 12,000MB/s, write up to 11,000MB/s
Random read up to 1400K IOPs, random write up to 1400K IOPs
4TB sequential read up to 12,000MB/s, write up to 11,000MB/s
Random read up to 1400K IOPs, random write up to 1400K IOPs
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Shock Resistant
1500G, duration 0.5ms, Half Sine Wave
Vibration Resistant
10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis (X, Y, Z)
TBW
1TB: 700TBW, 2TB: 1400TBW, 4TB: 3000TBW
MTBF
1,500,000 Hours
Dimensions (L x W x H)
80 x 24 x 17.35mm / 3.15' x 0.94' x 0.68'
Weight
72.5g / 0.16 lbs
Warranty
Five-year limited warranty
