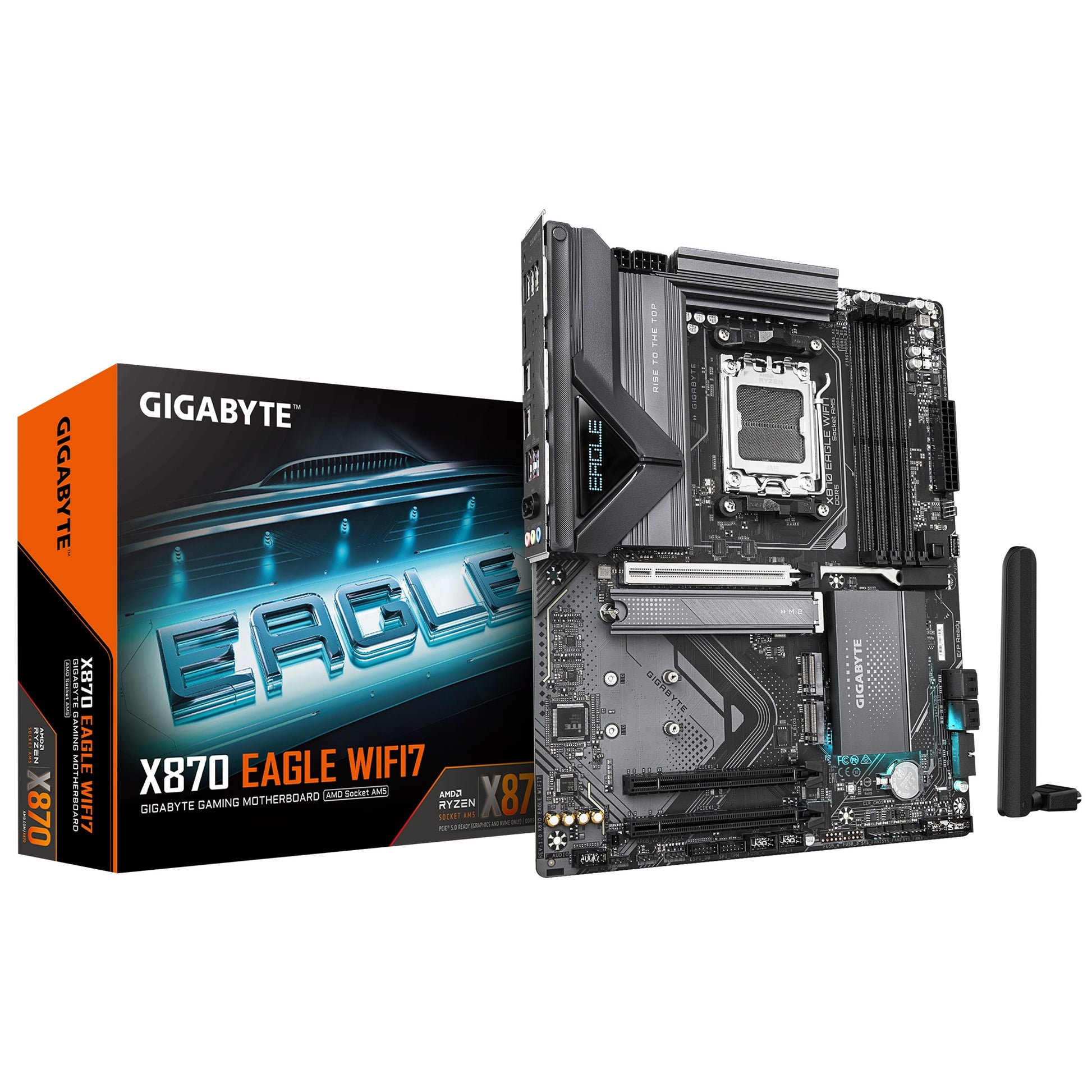

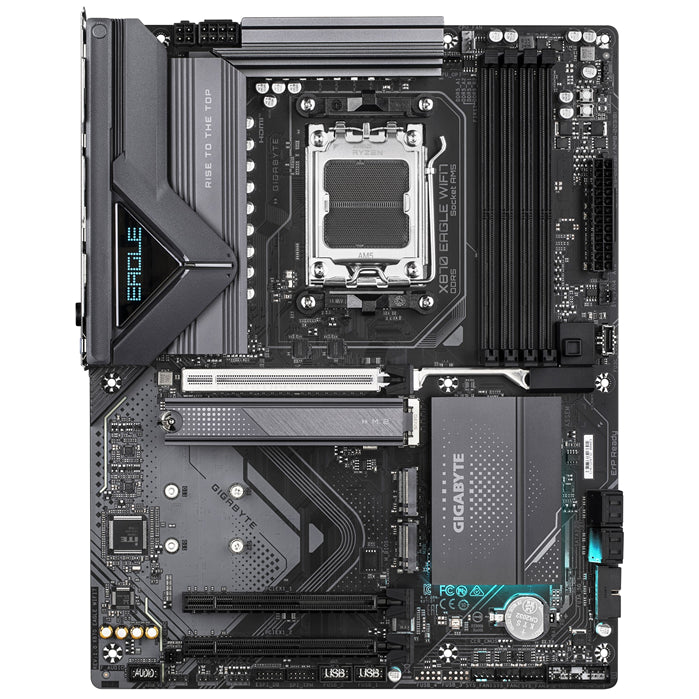

Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX Motherboard 4x DDR5~256GB,3x PCIe x16, 3x M.2, 4x SATA 6, 4x USB 3.2, 4x USB2.0, 2x USB-C

Gigabyte X870 EAGLE WIFI7 AMD AM5 ATX Motherboard 4x DDR5~256GB,3x PCIe x16, 3x M.2, 4x SATA 6, 4x USB 3.2, 4x USB2.0, 2x USB-C

CPU
AMD Socket AM5, support for:
AMD Ryzenâ„¢ 9000 Series Processors/
AMD Ryzenâ„¢ 8000 Series Processors/
AMD Ryzenâ„¢ 7000 Series Processors

Chipset
AMD X870

Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
Integrated Graphics Processor with AMD Radeonâ„¢ Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio
Realtek® Audio CODEC

LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzenâ„¢ 900/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzenâ„¢ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzenâ„¢ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB
CPU+ASMedia USB4® controller:
- 2 x USB4® USB Type-C® ports on the back panel
CPU:
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
CPU+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
